Broadcasting & Multimedia



R&S®ETH Handheld TV Analyzer



  • TV, spectrum and network analyzer in a single box
  • Frequency range up to 3.6 GHz or 8 GHz
  • High-precision demodulator (MER typ. 45 dB)
  • Wide input level range (–76 dBm to +10 dBm) for quasi-error-free transport stream decoding
  • Compact, lightweight, portable instrument that runs max. 4.5 hours on battery


R&S®EFL240/R&S®EFL340 Portable TV Test Receiver


  • Frequency range from 5 MHz to 2500 MHz
  • MPEG-2 and MPEG-4 decoding
  • Common Interface for encrypted programs
  • 5.7" TFT color display for SD and HD video output
  • Battery operation > 4 hours


R&S®SFC Compact Modulator



  • High precision modulator
    with MER > 40 dB
  • VHF and UHF frequency range,
    optionally up to 3 GHz
  • Level range from 0 dBm to –31.5 dBm,
    optionally to –110 dBm
  • Transport stream player and audio/video generator
  • AWGN generator

R&S®UPP Audio Analyzer



  • Suitable for all interfaces: analog, digital and combined
  • Parallel measurements on up to eight channels
  • Up to 80 kHz bandwidth and 200 kHz sampling rate
  • User-programmable filters for analyzer and generator
  • Compact instrument with integrated PC and low height

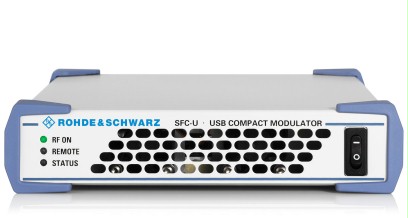

   R&S®SFC-U USB Compact Modulator
  • High precision modulator with MER > 40 dB
  • VHF and UHF frequency range, optionally up to 3 GHz
  • Level range from 0 dBm to –31.5 dBm, optionally to –110 dBm
  • Transport stream player and audio/video generator
  • AWGN generator
